Eyebolts: Specifications & Safety Information

Ken Forging Inc. Eyebolts are manufactured to ASME B18.15 and tested to ASTM A489 specifications.

General Information

Material Data

Material Carbon Steel
Heat Treat Quench and draw
Grain Size 5 or finer
Tensile 65,000 PSI MIN – 90,000 PSI MAX
Yield 30,000 PSI MIN
Elongation 30% MIN
Reduction of Area 60% MIN
Rated Capacity Eyebolt Dimensions & Rated Capacities

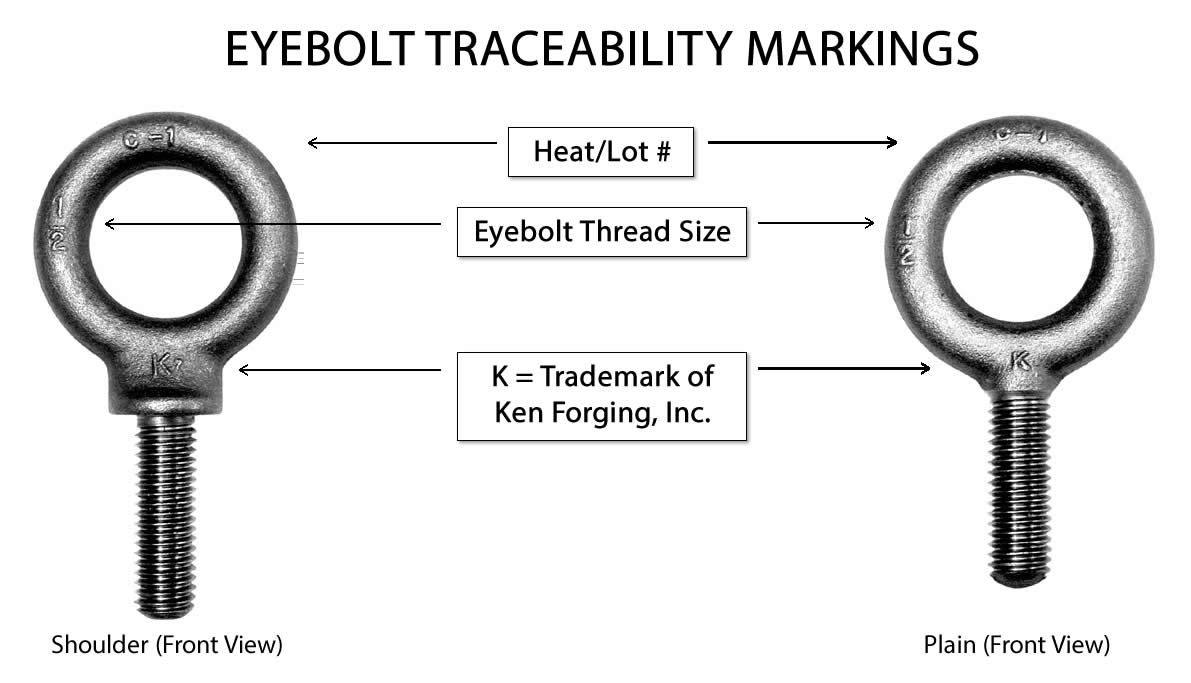

Traceability Markings

Application & Installation

  • The receiving hole should be counter-sunk and be free and clear of any debris to assure proper seating.
  • LOADS SHOULD ALWAYS BE ALIGNED TO THE PLANE OF THE EYE, not at an angle to the plane. A steel washer or spacer may be used in conjunction with Shoulder Eyebolts to attain proper load alignment. The thickness of the steel washer or spacer must not exceed one thread pitch.
  • Angular lifting should be avoided. Angular lifts significantly reduce rated capacities. See Rated Capacities/Guidelines.
  • Check seating after applying an angular lift since the initial lift may cause the bolt to back away from the load. If such occurs, the Eyebolt should be unloaded & properly reseated.
  • For applications with untapped through-holes, longer length Shoulder Eyebolts are recommended, using a steel washer and nut for the required thread length of engagement.
  • Shoulder Eyebolt tapped holes are to have a threaded length which allows for full length of shank engagement and clearance for the unthreaded portion of shank.
  • Shoulder Eyebolts must be firmly seated and flush against the mating surface; otherwise, the rated capacity is reduced significantly. The use of a steel washer or spacer is permissible and may be required; however, the thickness must not exceed one thread pitch.
  • Plain Eyebolt tapped holes are to be threaded for full length engagement of the Eyebolt.
  • Plain Eyebolts must have full thread shank engagement, allowing for one-half turn for proper eye-alignment to obtain rated capacities.



Inspection & Maintenance Safety

  • Eyebolts should be inspected and installed by a competent person who is knowledgeable about the application and installation of Eyebolts.
  • Each Eyebolt must be completely inspected BEFORE each use for possible defects such as: distortion, bent shank/threads, or incomplete/incorrectly formed threads. Periodic inspection of Eyebolts is highly recommended.
  • Eyebolts should not be painted or otherwise coated when used for lifting; such coatings make it difficult to inspect for defects or wear indicators.
  • Eyebolts should not be left where they can incur mechanical damage or corrosion.
  • Destroy Eyebolts when signs of bend, elongation, wear or damage are visible. Such signs indicate that the Eyebolt has been stressed (overloaded) beyond rated capacity. Never attempt to repair a stressed Eyebolt.
  • Destroy Eyebolts when they show any signs of alteration. Signs include: gouging, undercutting, welding, etc.
  • Proper Destruction of an Eyebolt: crushing or cutting clear across the eye of the Eyebolt.



Safety Precautions

  • DO NOT work, stand or crawl around the load of the Eyebolt. Ensure a safe distance from the load.
  • DO NOT use wrenches, crowbars, etc. to tighten Eyebolts. Hand tightening is recommended.
  • DO NOT use a single Eyebolt to lift a load that can rotate. Safety Swivel Hoist Rings are recommended for such loads.
  • DO NOT force hooks or any other fittings into the eye; they must fit freely.
  • DO NOT exceed the Rated Capacity.
  • DO NOT SHOCK LOAD EYEBOLTS. Gradually increase lifting of the load to minimize load-shock.
  • DO NOT weld Eyebolts, or perform any weld-repair on Eyebolts.
  • DO NOT machine Eyebolts on the shank or shoulder to achieve proper seating.
  • DO NOT expose Eyebolts to extreme environmental conditions, as they may adversely affect the Rated Capacity.



Size (Inches) 0° Lbs. 45° Lbs. 46° Lbs. +
1/4 500 125 SAFETY SWIVEL HOIST RINGS RECOMMENDED
5/16 900 225
3/8 1,300 325
7/16 1,800 450
1/2 2,400 600
9/16 3,000 800
5/8 4,000 1,000
3/4 5,000 1,250
7/8 7,000 1,750
1 9,000 2,250
1 1/8 12,000 3,000
1 1/4 15,000 3,750
1 1/2 21,000 5,250
1 3/4 28,000 7,000
2 38,000 9,500
2 1/2 56,000 14,000





Rated Capacities



Rated Capacity Guidelines

  • The minimum threaded shank length of Eyebolts must be one thread diameter to attain the rated capacity.
  • No greater load should be applied to an Eyebolt than the Rated Capacity listed.
  • Angular lifts significantly reduce Shoulder Eyebolt Rated Capacities. Shoulder Eyebolts should not be used for angular lifts greater than 45°; Safety Swivel Hoist Rings are recommended for such applications.
  • Plain Eyebolts are not recommended for angular load applications. Safety Swivel Hoist Rings are recommended for such applications.
